●Product Description

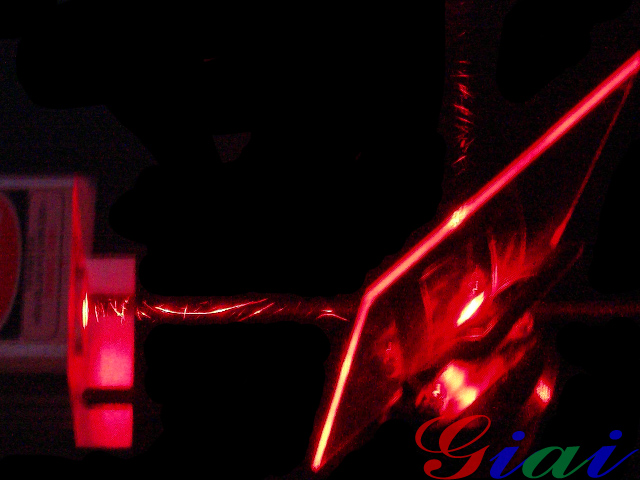

Consists of a carefully generated transparent substrate with a partially reflective coating on one side and an Anti-Reflection coating on the second surface. These are usually designed to be used at an angle of 45 degrees. By making the second surface at a wedged angle to the first surface any residual ghost image can be made to fall outside of field of view of the following system
●Product Detail
●Specifications
Material: BK7
Surface Accuracy: 4-6 lambda
Surface Quality: 80-50
Edges: Cut
Coatings (45 degree both sides)

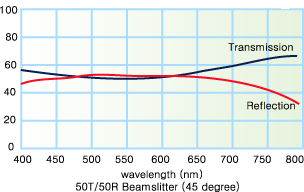

1st side: Dielectric (R/T as defined)±5% R/T at 550nm
2nd side AR 1/4 lambda MgF2 at 550nm:
